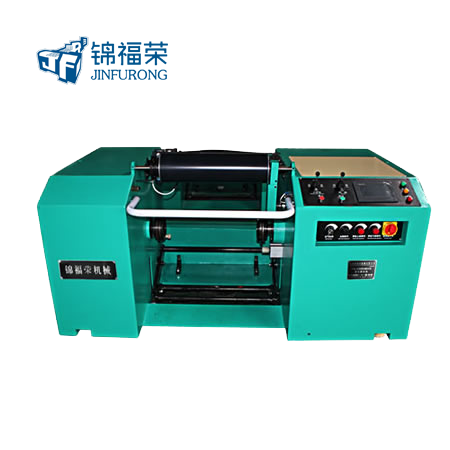

T-301 HIGH PRECISION SERVO CONTROL COPY WARPING MACHINE
T-301 highprecision servo copy warper in collaboration with Schneider electric company,using asynchronous servo control, is a king of computer for high precisionservocurrently on the market of special fine materials and the development ofcontrol copy warping machine. The machine is suittable for 15D-680D rawcotton., Di Changsi, acrylic, viscose rayon, monnfilament, spun yarn,theproduct is applied to high quality cloth, elastic high-grade fabrics etc…THE MAINFEATURES
1. With theguide rail slider type bracket device, the precision high, pan head positioningstructure
is stable, theoperation is convenient.
2. The front toadopyt advanced technology to the original, the overall structure, the steel isgood,
Stable andreliable.
3. Winding at aconstant linear speed, warping and real-time recording data storage.
4. The new headclamping, not to hurt the pan head hole.
5. With thehead and the tension roller through the bus control function.
6. Theintelligent computer real-time monitoring of copy function, tension differenceautomatic
Compensationbobbin size and their raw materials, can achieve the unification, real timeconstant
Tensioncontrol, warping the same group pan head, laps long, weight,circumference ofconsistent.
7. Using theSchneider industrial controller, Modbus485 commumication control, reduceinterference, improve the response speed, stable and relizble.
THE MAINTECHNICAL PARAMETERS
1. Suitable forpan head specification phi 762mm*535mm (30 inches)
2. The entirewarp speed: (50-1000) m/min
3. The yarntension: the total 200N (the best suitable materials:50D-150D)
4. Actioncontrol: pneumatic (source:0.8Mpa)
5. The motorrated power: 7.5kw
